140W 1A3C PD Module
140W 1A3C PD Module
High-Efficiency Type-C Power Supply Solution

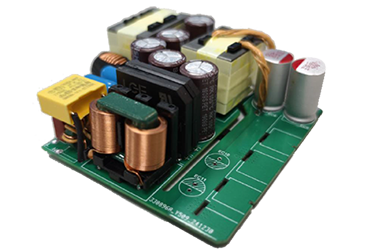

PCB Top View

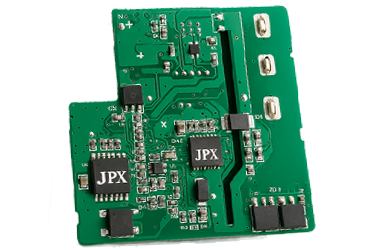

PCB Bottom View
Product Features
- High-Efficiency Design: Up to 93% efficiency at 115Vac
- Cost Advantage: Lower cost compared to PFC+LLC solution
- No DC-DC conversion stage required
- Ultra-low standby power: <0.3W at 230Vac
- Wide input voltage range: 100-240Vac
- Supports Type-C PD and Type-A output
- Complete protection features
Technical Specifications
| Input Characteristics | |
|---|---|
| Input Voltage Range | 100~240 VAC |
| Input Frequency | 47-63 Hz |
| Standby Power Consumption | < 0.3W (230VAC) |
| Output Characteristics | |
| Output Voltage | 28.4V |
| Output Current | 4.93A |
| Output Power | 140W |
| Ripple Voltage | < 300mV |
| Average Efficiency | >90% |
| Operating Temperature | 0~40℃ |
Solution Components
JP8320B106- PFC GaN Combo IC
JP8520B150-PWM GaN Combo IC
JP6022/JP6020 PD Protocol Controller
Download Specification JP8520B150-PWM GaN Combo IC
JP6022/JP6020 PD Protocol Controller
