JP8020 65W USB-PD Module
JP8020 65W USB-PD Module
High-Performance USB PD Power Supply Solution

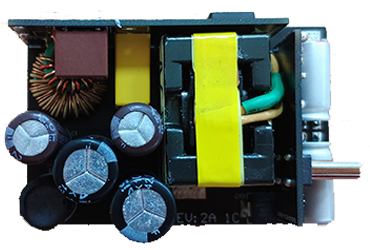

PCB Top View

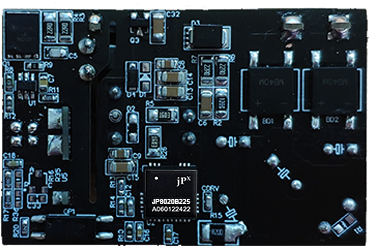

PCB Bottom View
Product Features
High-Performance Design
- Maximum efficiency up to 92.51%
- Multiple output voltage support
- DOE6 energy standard compliant
Global Voltage Compatibility
- 100-240VAC input range
- 50/60Hz frequency support
- No manual switching required
Superior Power Density
- 22.89 W/inch³ power density
- GaN switching technology
- Compact design
Comprehensive Protection
- Over-voltage protection
- Over-current protection
- Short-circuit protection
Technical Specifications
| Input Characteristics | |
|---|---|
| Input Voltage Range | 100~240 VAC |
| Input Frequency | 50/60 Hz |
| Standby Power Consumption | < 75mW @230VAC |
| Output Characteristics | |
| Output Voltage | 5V/9V/12V/15V/20V |
| Maximum Output Current | 3A (20V@3.25A) |
| Ripple Voltage | < 300mV |
