Product Overview

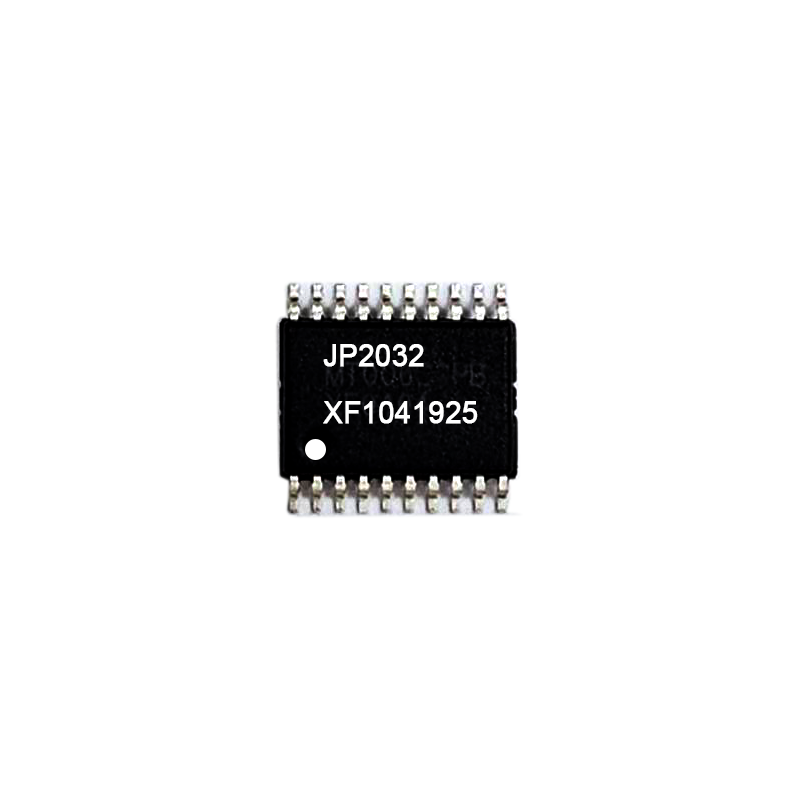

The JP2032 is Joint Power eXponent's latest 32-bit microcontroller featuring an ARM® Cortex®-M0 processor core, delivering excellent overall performance. Its CPU can operate at frequencies up to 96MHz, providing powerful computing capabilities. In terms of power management, it supports a wide operating voltage range from 2.0V to 5.5V and features outstanding low power consumption characteristics, requiring only 4μA (at 3.3V) in 25K IRC mode standby. Additionally, the JP2032 demonstrates exceptional environmental adaptability, operating reliably within an industrial temperature range of -40℃ to 105℃, and is equipped with 6KV ESD human body model protection capability. This ensures reliable operation even in harsh industrial environments, making it an ideal choice for industrial control, smart home appliances, and similar applications.

Processing Performance

Featuring the industry-proven Cortex-M0 architecture, with processor frequencies up to 96MHz, delivering powerful computing capabilities that meet various complex control and real-time computing application requirements. This high-performance design makes the JP2032 particularly suitable for industrial control and automation equipment requiring rapid response.

Power Management

The operating voltage range is remarkably wide, capable of stable operation between 2.0V and 5.5V. This flexible power supply characteristic enables it to adapt to various power supply environments, making it particularly suitable for battery-powered portable devices. Additionally, its excellent low-power design requires only 4μA standby current in 25K IRC mode (under 3.3V power supply), providing outstanding battery life for battery-powered applications.

Environmental Adaptability

Features excellent industrial-grade temperature range, capable of reliable operation within a wide temperature range from -40℃ to 105℃, ensuring stable performance even in harsh industrial environments. This temperature tolerance makes it particularly suitable for industrial control equipment, outdoor devices, and similar application scenarios.

EMI/EMC Immunity

Built-in high-specification ESD protection design, providing up to 6KV Human Body Model (HBM) electrostatic protection capability, significantly enhancing product reliability in various operating environments. This robust interference immunity makes the JP2032 particularly suitable for use in industrial environments with strong electromagnetic interference.

Features

High-Performance Processor
• Maximum operating frequency up to 96MHz
• Single-cycle multiplication support
• Hardware divider acceleration
• Bit manipulation instruction support

Power Characteristics
• Operating voltage range: 2.0V ~ 5.5V
• Multiple power-saving mode support
• Flexible clock management system
• Low power consumption: only 4μA standby current in 25K IRC mode (3.3V supply)

Operating Environment
• Industrial temperature range: -40℃ ~ 105℃
• 6KV ESD protection (HBM)
• Excellent electromagnetic compatibility (EMC) performance

System Resources
• 32KB Flash (ISP, 10-year retention), 4KB SRAM
• Built-in 96MHz RC oscillator, 4-24MHz crystal, 25KHz LP oscillator
• Built-in LDO, multi-level power modes, fast wake-up, power monitoring

Security Features
• System Protection: Code protection, secure zone, watchdog timer
• watchdog timer, clock failure detection

Reliability Design
• Power voltage monitoring
• Clock monitoring system
• Multiple reset sources
• System exception protection

Special Specifications
• ESD Protection Level: 6KV (HBM)
• Flash Memory: 32KB • SRAM: 4KB
• ADC: 14 channels, 12-bit@1.5MHz
• Complete communication interface support: UART, SPI, I2C, CAN 2.0B, USB 2.0 FS
