USB Power Delivery Protocol Controller IC
PD Protocol IC (JP6020/JP6022)
The JP6020/JP6022 series are USB Power Delivery controllers with integrated PD protocol engines for USB Type-C power applications. Both feature bi-directional power delivery, comprehensive protection mechanisms, and PPS technology for precise voltage regulation.
The JP6020 complies with USB PD 3.0, delivering up to 100W (20V/5A) with 3.3V-21V range and 93% efficiency. The JP6022 supports USB PD 3.1 with EPR mode, offering 240W (48V/5A) output, 5V-48V range, and 95% efficiency, ideal for high-power applications.
PD Protocol IC

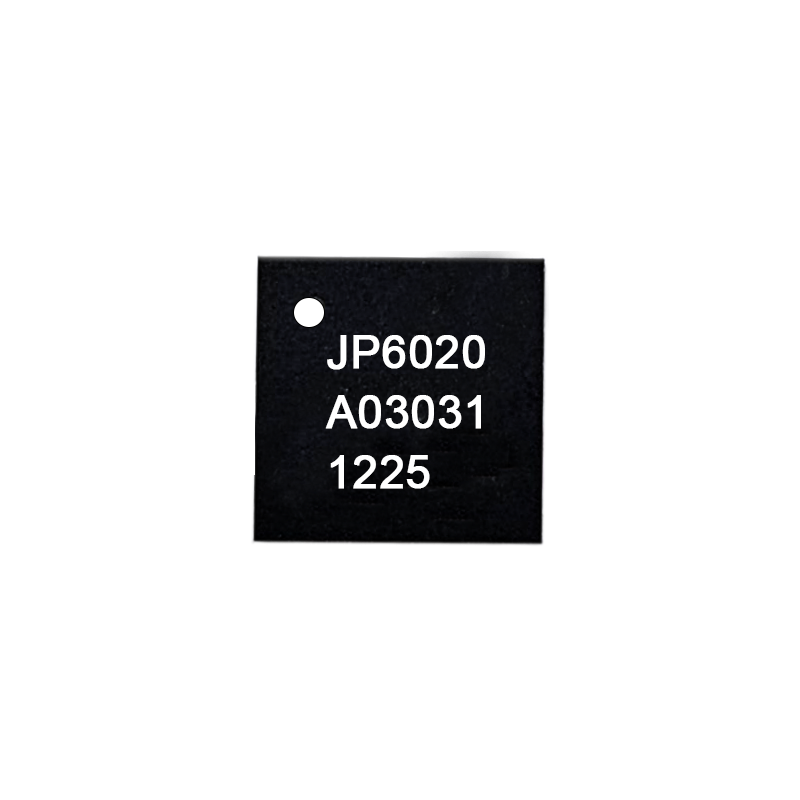

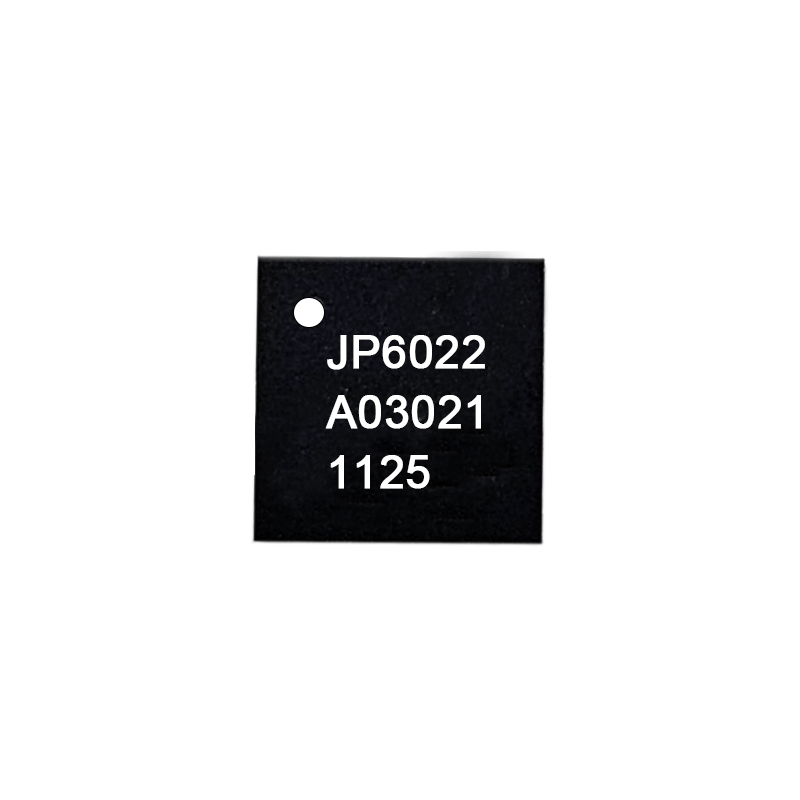

JP6020/JP6022
Product Overview
The JP6020/JP6022 series are configurable secondary-side SMPS controllers designed for high-efficiency and high power density offline AC-DC converters. This series integrates an MCU that can handle various protocols through D+/D- and CC1/CC2 pins. JP6020 supports output voltage ranges from 3.3V to 21V, while JP6022 extends from 5V to 48V. Both products feature dual operational amplifiers for voltage and current loop regulation, providing high-precision constant voltage (CV) and constant current (CC) control.
Features
Protocol Support
• SCP, FCP, BC, QC2.0, QC3.0
• JP6020: USB PD2.0, USB-PD3.0
• JP6022: USB PD2.0, USB-PD3.1
• Apple mode
High Integration
• JP6020: Built-in MCU with OTP and SRAM
• JP6022: Built-in MCU with MTP and SRAM
• USB Type-C Support: Cable detection, power settings (1.5A/3A), VConn for E-mark
Protection Mechanisms
• Under-voltage protection
• Self-adjusting overvoltage protection
• Firmware programmable overcurrent protection
• Over-temperature protection
Application
Supporting SCP and other fast charging protocols
Multiple PDO
(Power Data Object) Configuration Support
Part Numbers and Ordering Information
| Part Number | PD Version | Output Voltage Range | Package | Maximum Power (W) | |||
| JP6020 | PD3.0 | 3.3V - 21V | QFN 4x4 | 100 | |||
| JP6022 | PD3.1 | 5V - 48V | QFN 4x4 | 100 | |||
Note: For detailed specifications, please refer to the latest datasheet.
For product information or support, contact our sales team.
