PWN GaN Combo IC Series (JP8020/JP8520)

This is an offline AC/DC controller with integrated high-voltage GaN transistors, designed for high-efficiency, compact power supply solutions, offering both high performance and cost-effectiveness.

This series represents a highly integrated AC/DC conversion solution, featuring built-in 650V GaN power transistors and green startup switches. It supports up to 70W for flyback and 150W for boost topologies. Its high-frequency operation (100~500kHz) significantly reduces transformer and capacitor sizes, enhancing power density, making it ideal for efficient, miniaturized power supply designs.

Integrated GaN AC/DC Controller

(JP8020/JP8520)

Product Overview

The JP8020/JP8520 is a new generation of highly integrated Gallium Nitride (GaN) AC/DC controller solution, incorporating 650V GaN power components and green startup switch, designed for high-performance power applications. This series supports up to 70W for flyback topology and 150W for boost topology, achieving high power density and compact design through 100~500kHz high-frequency switching operation.

Features

  • Built-in startup switch for simplified circuit design
  • High-frequency switching up to 500kHz
  • Valley switching technology for enhanced efficiency and reduced EMI
  • Minimized BOM cost design
  • Ultra-low standby power consumption
  • Complete ESD protection:
    • HBM > 2KV
    • MM > 200V
    • CDM > 1KV

Application

USB Type-C Power Adapters
Mobile Phone and Tablet Chargers
Laptop Power Supplies
Consumer Electronics Power Supplies

Part Numbers and Ordering Information

Part Number Topology GaN Tyep Rds on (mohm) Vds (V) Frequency (kHz) Package Power (W)

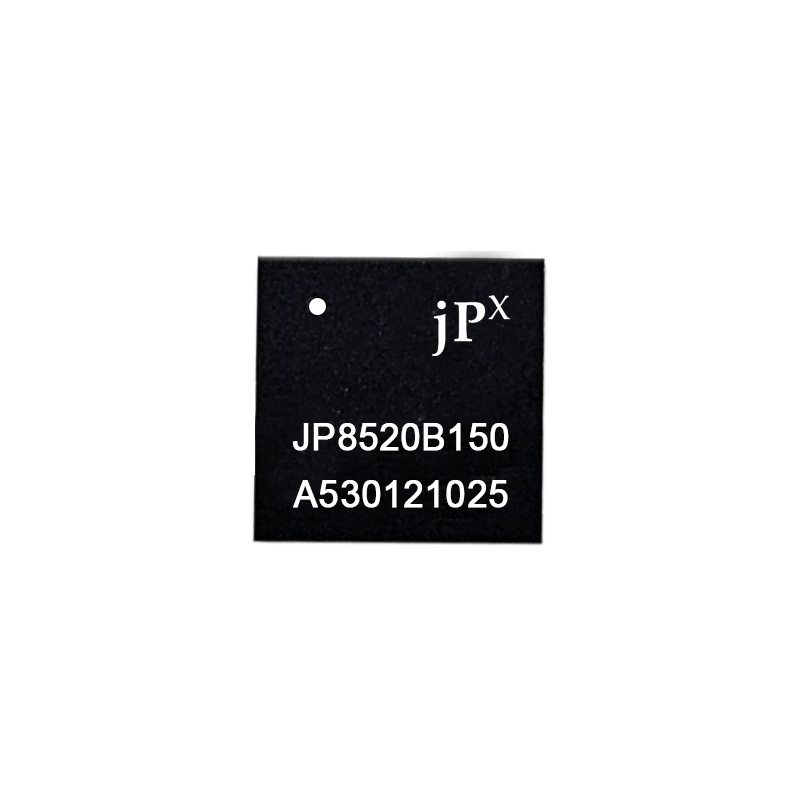

JP8020B165 Flyback E-mode 165 650 50~549 QFN 8x8 65~100
JP8520B150 Flyback D-mode 150 650 50~549 QFN 8x8 140
JP8520B300 Flyback D-mode 300 650 50~549 QFN 8x8 65~100
JP8520C480 Flyback D-mode 480 650 50~549 ESOP 8 35
JP8520E480 Flyback D-mode 480 650 50~549 ESOP 16 45



Note: For detailed specifications, please refer to the latest datasheet.
For product information or support, contact our sales team.
